500kVA Power Distribution Unit
Our 500kVA Power Distribution Unit delivers intelligent power distribution for high-density infrastructure with revenue-grade metering accuracy (ANSI C12.20/IEC 62053-22 Class 0.5). Featuring a K-9 rated transformer with 480VAC input and dual output options (240/415VAC or 120/208VAC), each factory-tested unit includes eight 400A 100% rated smart breakers with individual monitoring, integrated 10" color HMI touchscreen, and comprehensive power quality analysis with waveform capture and ITIC event plotting.
Engineered for maximum uptime at 96-98% efficiency, our PDU integrates seamlessly with Building Monitoring Systems via Modbus TCP/IP while providing real-time diagnostics, configurable alarm thresholds, and per-breaker energy metrics. With convection cooling eliminating maintenance-intensive fans, absence of voltage indicators for enhanced safety, and right or left side distribution configurations, this turnkey solution serves data centers, mission-critical facilities, and high-density industrial applications. MCI Power Products & Controls Solutions delivers the reliability, intelligence, and operator-focused design your facility demands.
Write a Review
500kVA Power Distribution Unit
Intelligent 500 kVA PDU for Mission-Critical Distribution
When every minute of downtime costs thousands in revenue, patient safety, or production losses, power distribution becomes your first line of defense. The MCI Power Products & Controls Solutions Group PDU transforms reactive troubleshooting into proactive management—combining revenue-grade metering, per-breaker analytics, and 10" HMI visibility to detect anomalies before they cascade into outages that halt operations.

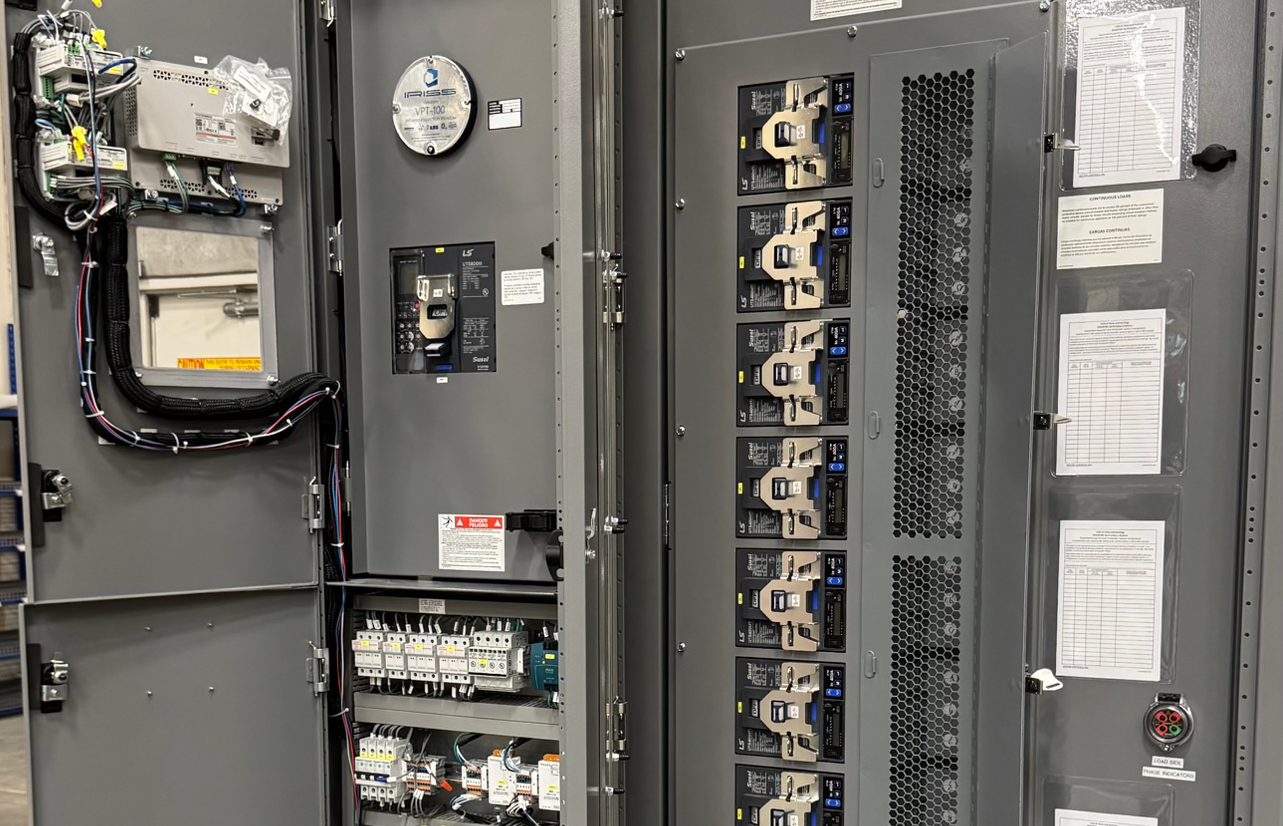

Built for high-density infrastructure that can't afford surprises: K-9 rated transformer handles nonlinear loads, 800 AF main (600A) with eight 400A 100%-rated sub-feeds prevent nuisance trips, and integrated surge protection guards against transients. With 480 VAC input, dual output options (240/415 VAC or 120/208 VAC), right/left distribution, and top/bottom entry—deployment adapts to your facility while Modbus TCP/IP connects to BMS for centralized oversight and faster incident response.
Data-Ready PDU: Metering, Analytics, and Control
Transform power distribution into actionable intelligence. The MCI 500kVA PDU combines revenue-grade metering, per-breaker analytics, and 10" color HMI with Modbus TCP/IP integration—delivering real-time visibility, waveform capture, and configurable alarms that turn data into decisions and prevent downtime before it happens.
Revenue-Grade Metering & Analytics
ANSI C12.20 Class 0.1 power quality meter and Class 0.2 branch circuit metering deliver laboratory-grade accuracy. Track per-breaker kVA, kW, kWh, and power factor with true RMS readings. Monitor voltage/current THD, capture 6-cycle waveforms, and plot ITIC curves for comprehensive power quality analysis. Every metric you need to optimize energy usage and billing accuracy.
Intelligent Monitoring & Diagnostics
10" color touchscreen HMI displays real-time system parameters, breaker statuses, and event-driven data across all phases. Configurable alarm thresholds for voltage, current, THD, frequency deviation, and overcurrent conditions alert operators before issues escalate. Advanced breaker diagnostics with trip status, device management, and visual feedback ensure rapid fault identification.
Seamless BMS Integration
Connect to Building Monitoring Systems via Modbus TCP/IP for centralized oversight. Access WebView remote monitoring, history logs, alarm summaries, and breaker states from anywhere. Export trend data for predictive maintenance planning. IP-20 rated, convection-cooled design with no fans or filters means reliable data collection with minimal maintenance—factory-tested and ready to integrate.
Power Distribution Unit (PDU) — Technical Specifications
- Rated Capacity 500 kVA
- Input Voltage 480 VAC, 3-phase
- Output Voltages 240/415 VAC or 120/208 VAC
- Main Device 800 AF main (set at 600 A)
- Sub-Feed Breakers 8 × 400 A, 100%-rated
- Transformer K-9 rated
- Metering Revenue-grade (ANSI C12.20 / IEC 62053-22)
- Operator Interface 10″ color HMI with real-time data, waveform capture & ITIC plotting
- Communications Modbus TCP/IP for BMS integration
- Protection Surge Protection Device (SPD); enhanced breaker diagnostics & alarms
- Cable Entry & Layout Top/Bottom entry; right/left side distribution
- Safety & Cooling IP-20 operator protection; convection-cooled, low-maintenance
- Factory Testing Assembled, inspected, and function-tested prior to shipment
- Applications Mission-critical facilities, industrial power distribution, commercial buildings
Ready to Deploy Your PDU?
Configure an uptime-first 500 kVA Power Distribution Unit with 10" HMI insight, revenue-grade metering, smart breaker diagnostics, surge protection, and Modbus TCP/IP for fast BMS integration—factory built, inspected, and function-tested.
